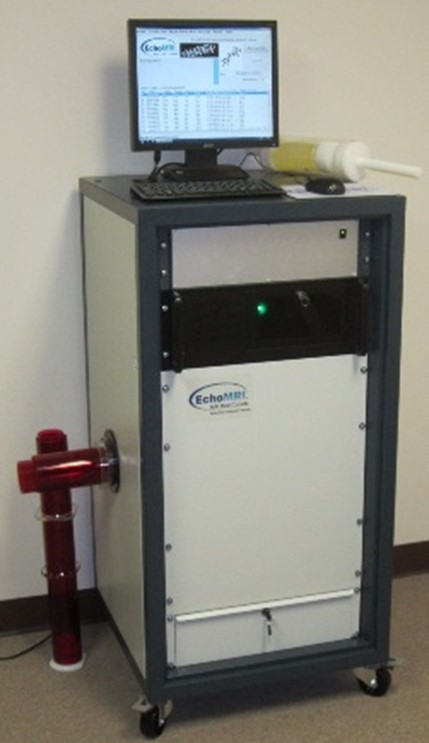

Live tissue Analyzer

Zinsser Analytic is the distributor of EchoMRI™ (US) offering a broad range of whole body composition analysers.

EchoMRI™’s systems offers:

Analysis of fat mass, lean mass, free water and total body water with a direct measurement method, the Quantitative Magnetic Resonance (QMR).
Experience and track of work shown in hundreds of papers:
http://www.echomri.com/Publications_EchoMRI_Body_Composition.aspx
Measurements are feasible non-invasive and in vivo. Thus, no anaesthesia and restraining is required.
Quantitative measurements with samples from 7g (organs) up to humans and pets (up to 250 kg).
Measurement times between 0,5 and 3,5minutes / sample, depending upon the precision options

Request a Quote Request Service, Parts or Support

Body composition analyzers are used worldwide to measure body composition responses to drugs, genetic knockouts, diet, and aging, in research areas such as obesity, diabetes, nutrition, pharmacology, osteoporosis, cardiology, animal physiology, etc.
Several hundred EchoMRI™ systems have been successfully installed in more than 80 pharmaceutical companies and more than 150 universities, medical facilities, hospitals and other leading metabolic research institutions in the US, Canada, Europe, and Asia for metabolic and obesity research in live animals.
Clinical trials for humans are possible as well: body composition analyzers for infants, children, and grown humans, aimed at providing solutions to the pharmaceutical and medical industries for testing the efficacy in clinical trials of anti-obesity and metabolic drugs and treatments.
Zinsser Analytic cares for the European wide distribution for EchoMRI™:
EchoMRI™ R&D and manufacturing office in Houston TX, USA and marketing office in Singapore
EchoMRI™ is a registered trademark of EchoMRI Corporation

EchoMRI™-100H

General

Dimensions: 24”W x 24”D x 49”H / 61cm x 61cm x 125cm
Weight: Approximately 495lbs / 225Kg
Instrument power: 1 outlet at 115/230 VAC, 50-60 Hz, 500 W, 8A/4.5A

Shielding: The 5-Gauss magnetic field is fully contained inside the rack with two exceptions: a 9”-radius hemisphere protruding from the rack at the bore opening and a similar hemisphere directly opposite to the bore opening.

Max Sample Mass: 100 grams
Holders: 3 animal holders of custom-defined sizes, typically 20, 40, 60, 80, and 100 grams. Additional holders are available.
Mobility: Single-body system on 4 casters for easy relocation
Warm-up Time: 5 - 10 minutes after turning power on

Interfaces

Operating System: Windows 10 Professional
User Input: Keyboard, mouse, and ASCII files
User Output: Monitor and files: ASCII, Excel, Access
Communication Ports: 2 USB / 1 RJ45 CAT-5 10/100Mb network card
Monitor: 17" LCD flat screen

Functions

Measuring time: 0.5 - 3.2 minutes, depending on the precision option
Calibration: Not required after installation
Records: Automatic save in file system and database
Measured: The whole body masses of Fat, Lean, Free Water, and Total Water

Other Max Sample Mass Options

130 grams: Typical choices of holder sizes are 20, 40, 60, 80, 100, and 130 grams.

EchoMRI™ 3-in-1

Body Composition Analyzer Product Specifications (Basic Model)

General

Dimensions: 24"W x 32"D x 49"H / 61cm x 80cm x 125cm
Weight: Approximately 495lbs / 225Kg
Instrument power: 1 outlet at 115/230 VAC, 50-60 Hz, 500 W, 8A/4.5A
Shielding: The 5-Gauss magnetic field is fully contained inside the rack with the exception of hemispherical volumes of 3" radius at the upper opening of each bore.
Max Sample Masses:
up to 100 grams - Mice probe
up to 7 grams - Tissue probe
up to 300 milligrams - Biopsy probe
Holders:
3 animal holders of custom-defined sizes,
1 for each probe size
Mobility: Single-body system on 4 casters for easy relocation
Warm-up Time: 5 - 10 minutes after turning power on

Interfaces

Functions

Reduced Models

EchoMRI™-2in1 2 bores: for Mice up to 100 grams and Organs/Tissues up to 7 grams
EchoMRI™-100V 1 bore for Mice up to 100 grams

EchoMRI™-4-in-1

General

Dimensions: 48"W x 28"D x 52"H / 121cm x 71cm x 132cm
Weight: Approximately 830lbs / 380Kg
Instrument power: 1 outlet at 115/230 VAC, 50-60 Hz, 500 W, 8A/4.5A
Shielding of Vertical Part: The 5-Gauss magnetic field is fully contained inside the rack with the exception of hemispherical volumes of 3" radius at the upper opening of each bore.
Shielding of Horizontal Part: The 5-Gauss magnetic field is fully contained inside the rack with two exceptions: a 9”-radius hemisphere protruding from the rack at the bore opening and a similar hemisphere directly opposite to the bore opening.
Holders for Vertical Bores: 3 holders of custom-defined sizes, one for each probe size. Additional holders are available.
Holders for Horizontal Bore: 3 holders of custom-defined sizes, typically 300, 500, and 700 grams. Additional holders are available.
Mobility: Single-body system on 6 casters for easy relocation
Warm-up Time: 5 - 10 minutes after turning power on
Range:

up to 700 g for the Rats (horizontal) probe
up to 100 g for the Mice (vertical) probe
up to 7 g for the Tissue/Organs (vertical) probe
up to 0.3 for the Biopsy (vertical) probe

Interfaces

Operating System: Windows 10 Professional
User Input: Keyboard, mouse, and ASCII files
User Output: Monitor and files: ASCII, Excel, Access;
Communication Ports: 2 USB / 1 RJ45 CAT-5 10/100Mb network card
Monitor: 17" LCD flat screen

Functions

Other Max Sample Mass Options

500 grams: Typical choices of holder sizes are 300, or 500 grams.
900 grams: Typical choices of holder sizes are 300, 500, 700, or 900 grams.
1100 grams; Typical choices of holder sizes are 300, 500, 700, 900, or 1100 grams.

EchoMRI™-500

Body Composition Analyzer Product Specifications (Basic Model)

General

Dimensions: 24"W x 32"D x 49"H = 61cm x 80cm x 125cm
Weight: 495lbs = 225Kg
Instrument power: 1 outlet at 115/230 VAC, 50-60 Hz, 500 W, 8A/4.5A
Shielding: The 5-Gauss magnetic field is fully contained inside the rack with two exceptions: a 9"-radius hemisphere protruding from the rack at the bore opening and a similar hemisphere directly opposite to the bore opening.
Max Sample Mass: 500 grams
Holders: 3 animal holders of custom-defined sizes, typically 300 or 500 grams. Additional holders are available.
Mobility: Single-body system on 4 casters for easy relocation
Warm-up Time: 5 - 10 minutes after turning power on

Interfaces

Operating System: Windows 10 Professional
User Input: Keyboard, mouse, and ASCII files
User Output: Monitor and files: ASCII, Excel, Access
Communication Ports: 2 USB / 1 RJ45 CAT-5 10/100Mb network card
Monitor: 17" LCD flat screen

Functions

Other Max Sample Mass Options

700 grams: Typical choices of holder sizes are 300, 500, or 700 grams.
900 grams: Typical choices of holder sizes are 300, 500, 700, or 900 grams.
1100 grams; Typical choices of holder sizes are 300, 500, 700, 900, or 1100 grams.

Other

Options for Still Smaller Animals and Samples Product Specifications

P10

Description: Dedicated system test sample and holders for samples up to 7 grams
Range: Samples up to 7 grams
Compatibility: EchoMRI™-100/130
Holder: 7 grams

A10

Description: Dedicated system test sample and holders for samples up to 7 grams with additional antenna/sensor insert for added sensitivity
Range: Samples up to 7 grams
Compatibility: EchoMRI™-100/130 and EchoMRI™-500/700/900/1100
Dimensions: Cylinder 2"OD x 21"L / 50.8mm x 533.4mm
Weight: Approximately 5lbs / 2.3Kg
Holders: Sample holder 0.266"ID x 1"L / 6.8mm x 25.4mm

A100

Description: Additional antenna/sensor insert. Dedicated system test sample and holders
Range: Live animals up to 100 grams
Compatibility: EchoMRI™-500/700/900/1100
Dimensions: Cylinder 4"OD x 21"L / 101.6mm x 533.4mm
Weight: Approximately 5lbs / 2.3Kg
Holders: Typically 20, 40, 60, 80, and 100 grams
